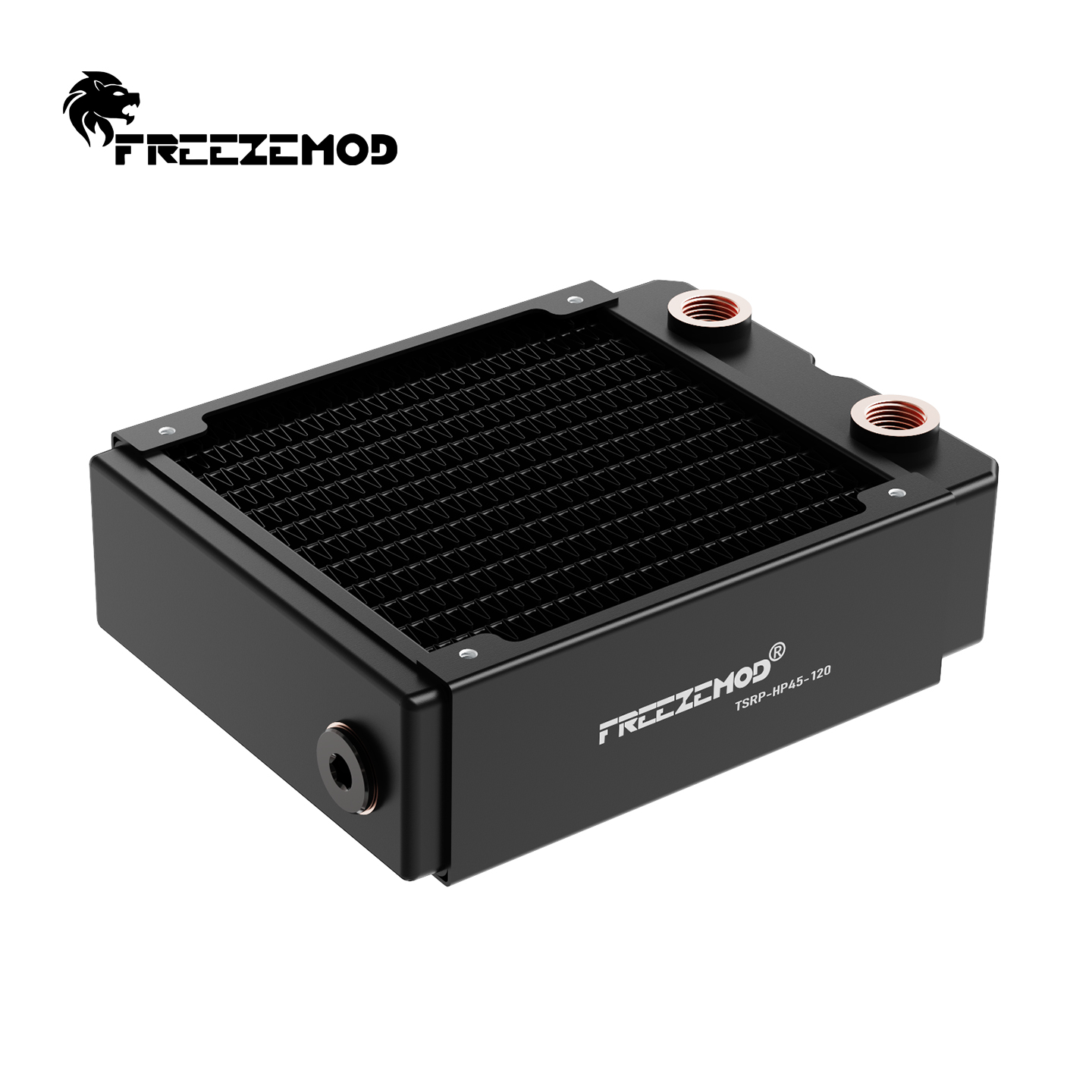

FREEZEMOD pc water cooler copper radiator double layers 45MM thick copper fins five holes G1/4 ROHS certification.TSRP-HP45-120

Model: TSRP-HP45

Name: Double copper heat sink

TSRP-HP45-120&about 151mm*width 120mm*thick 45mm (without inlet and outlet thread height and the thickness of end plug)

NW.:583g

Material: water chamber + flat tube ( brass), Fin ( brass),Guard plate (stainless iron SUS430)

Thread: G1/4

Threaded hole position: 5 (sewage chamber * 4 + upper water chamber * 1)

Number of pipes: 12 * 2 layers

Fin spacing: 4mm

Surface treatment: spraying

Packing list:

120 Copper radiator*1

Screw *1 set (Thread 6#32)

Water stop plug *3 (installed)

Protected original design, please do not copy.

Note: The solder of this product is made of tin with a purity of 99.6%, which is not the purity of 60% tin in the market. Therefore, the whole series has passed ROHS 2.0 certification and can be exported to the EU.
