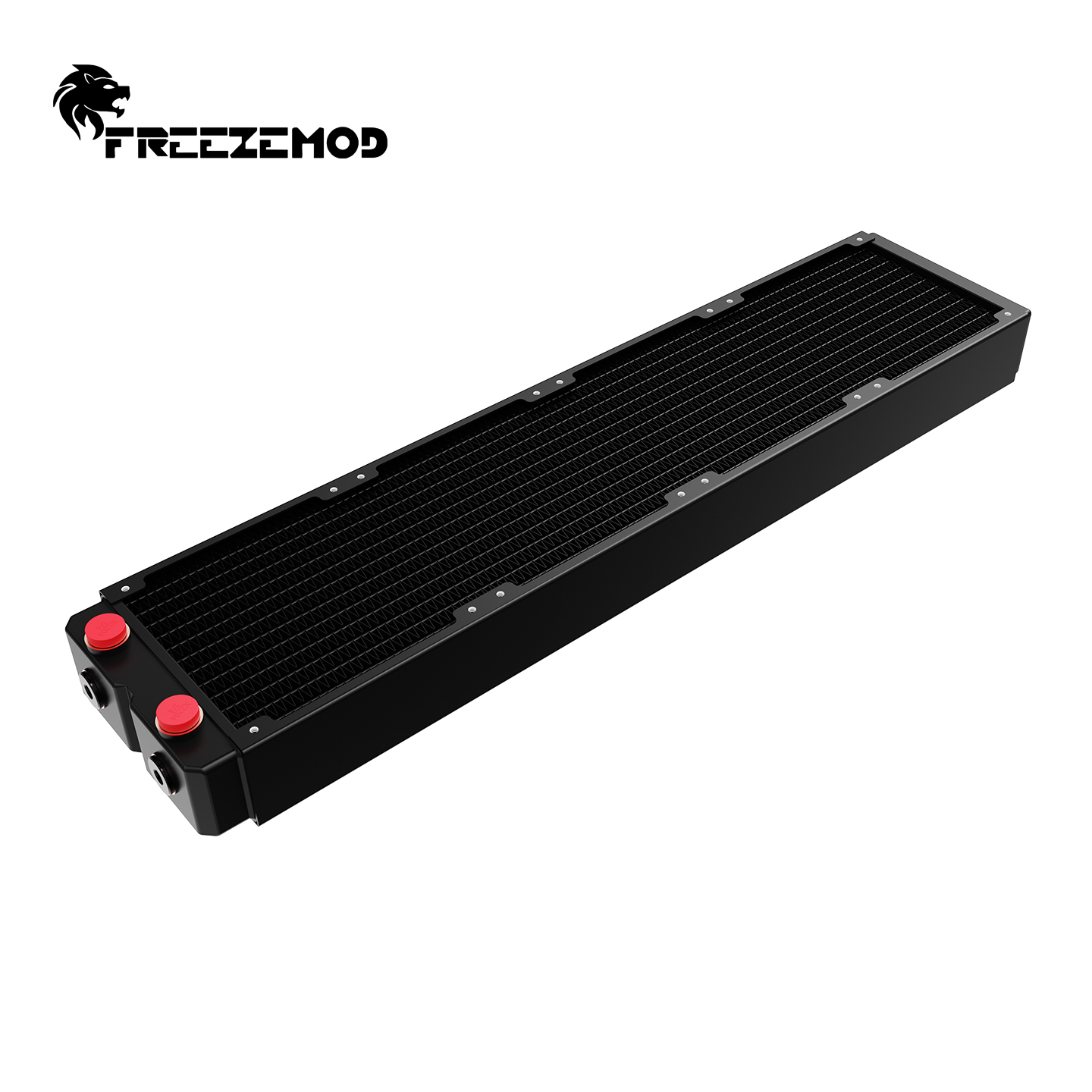

FREEZEMOD computer pc water cooler copper radiator double layers 45MM thick copper fins G1/4 ROHS certification. TSRP-HP45-480

Description：

Model: TSRP-HP45-480

Material: red copper fins + brass water chamber flat tube + steel guard plate

Hole position: G1/4 thread *5

Size: 514mm* 120mm* 46.85mm

Capacity: about 330ml (manual measurement, slight error)

Pressure test: 1bar(Please note: it is recommended not to exceed this pressure value during use, which may cause damage risk)

Suitable fan: 12cm fan

Number of pipes: 12 in single layer, 24 in total in 2 layers

Heat dissipation area: 1.58 square meters

Surface treatment: Spraying

Welding agent: environmentally friendly tin complies with ROHS 2.0

Packing list:

Copper radiator *1pcs

E​nd plug*3 pcs(installed)

Screw*32（Thread 6#-32, long screw length 31mm, short screw length 9mm）
