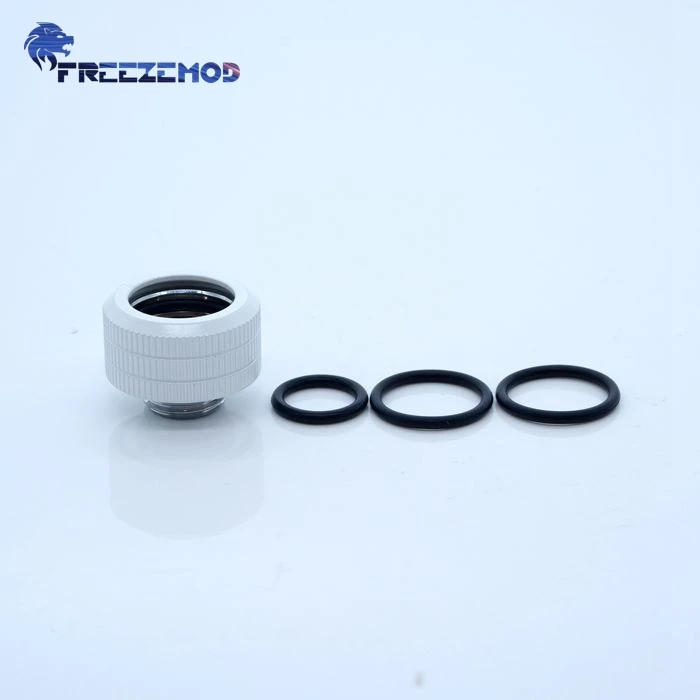

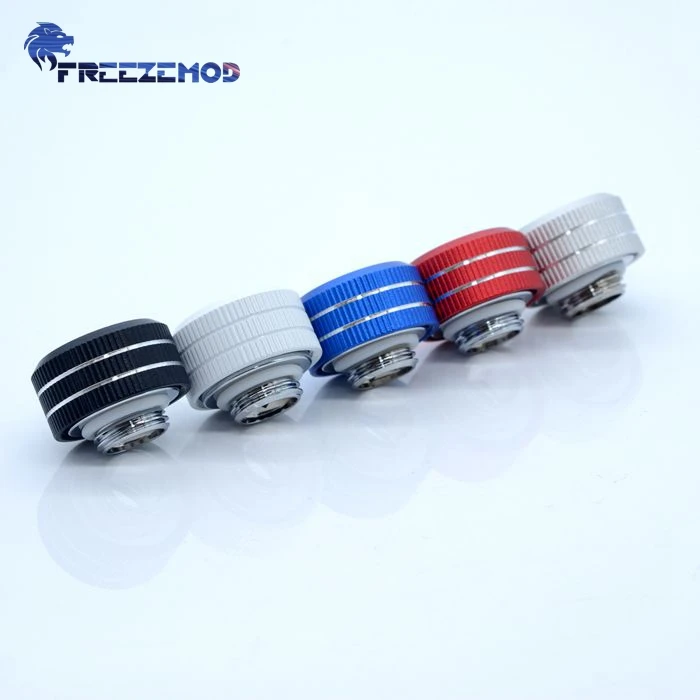

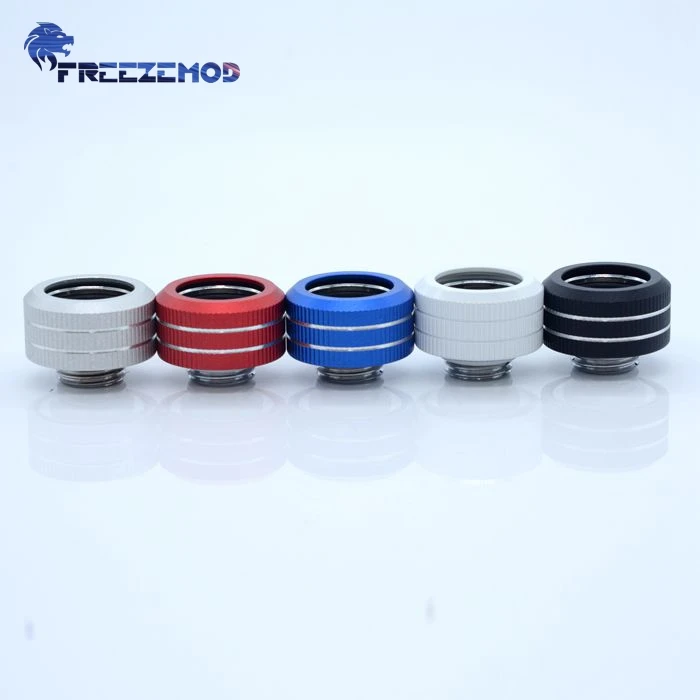

Note: The white color fitting surface do not has three-waist line bright silver design, the red, blue, silver and black color with.
The below water tank is only used to show the installation method, is not the default configuration.

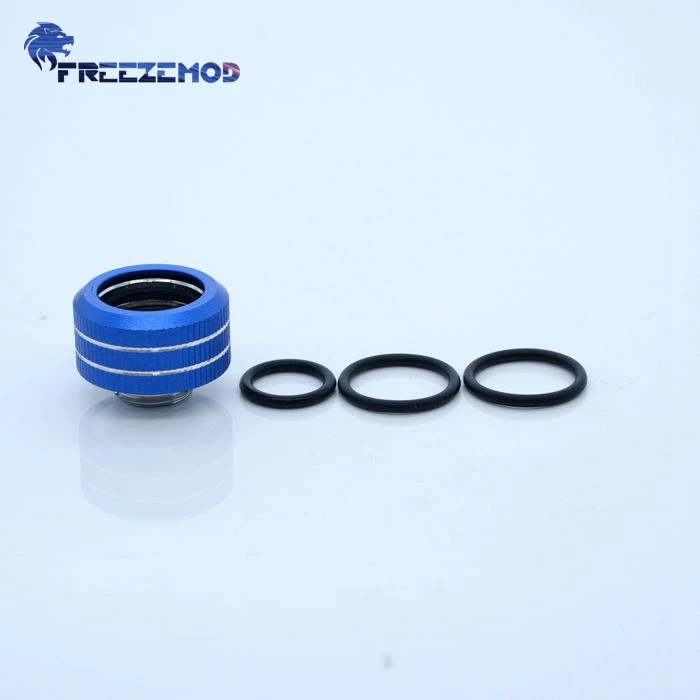

Name: color 16MM three ring hard tube fitting
Specifications: approx. (length 18mm with thread * diameter 24mm)
Supports PETG/PMMA hard tube with outer diameter of 16MM
Thread: outer G1/4
Accessories: white silicone seal ring (installed) + black nitrile seal (spare) (white is long life silicone seal ring
Black is the high temperature seal)
Raw materials: high quality brass + color cover aluminum alloy
Fixing method: Hexagonal M8 fixed (tool please search for “wrench” in the store)
Sealing method: built-in 2 ring seal + external 1 ring seal
Surface treatment: electroplating
OD 16mm hard tube fitting*1 pcs
