FREEZEMOD computer water cooling 14MM color hard tube fitting 3 sealing ring internal thread fixing G1/4 thread. BYGKN-C14

Product Description

Ali express store

https://watercooling.aliexpress.com/store/1480188?spm=5261.11152143.0.0.147f3e5fFiecOX

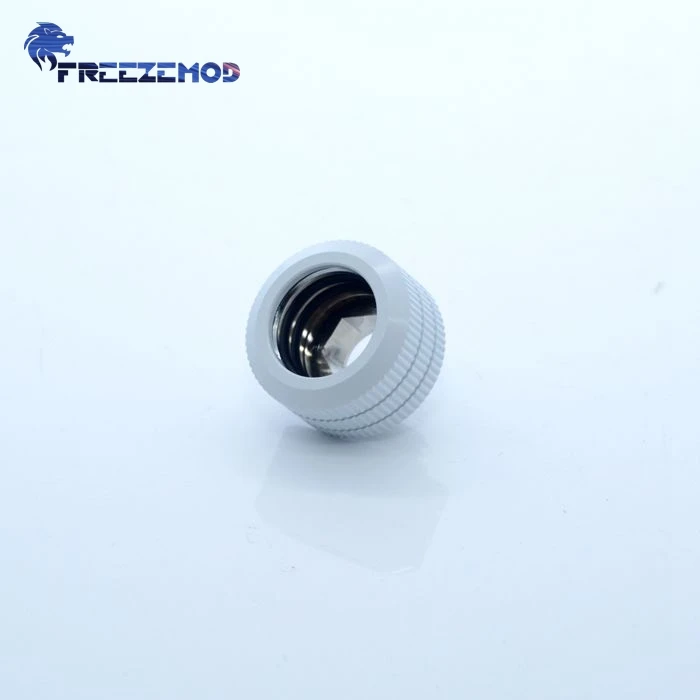

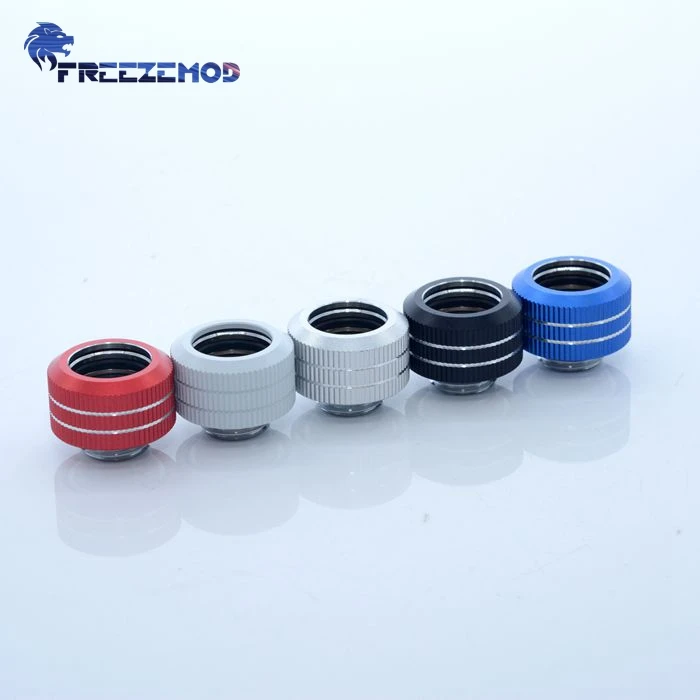

Note: The white color fitting surface do not has three-waist line bright silver design, the red, blue, silver and black color with.

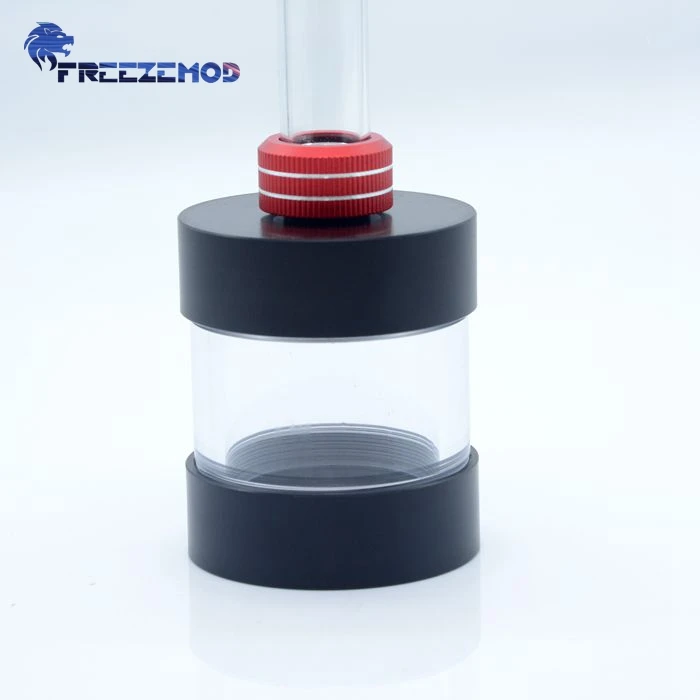

The below water tank is only used to show the installation method,  is not the default configuration.

Model: BYGKN-C14

Name: color 14MM three ring hard tube fitting

Specifications: approx. (length 17.3mm with thread * diameter 22mm)

Supports PETG/PMMA hard tube with outer diameter of 14MM

Thread: outer G1/4

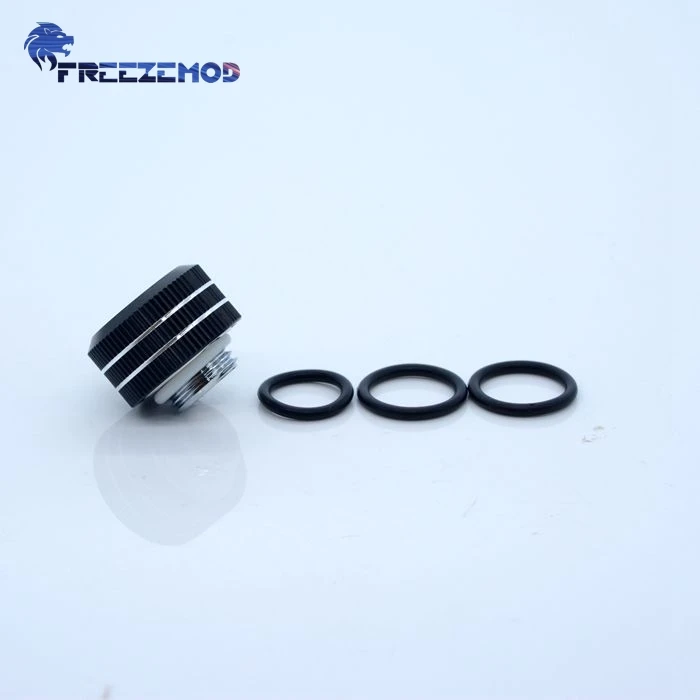

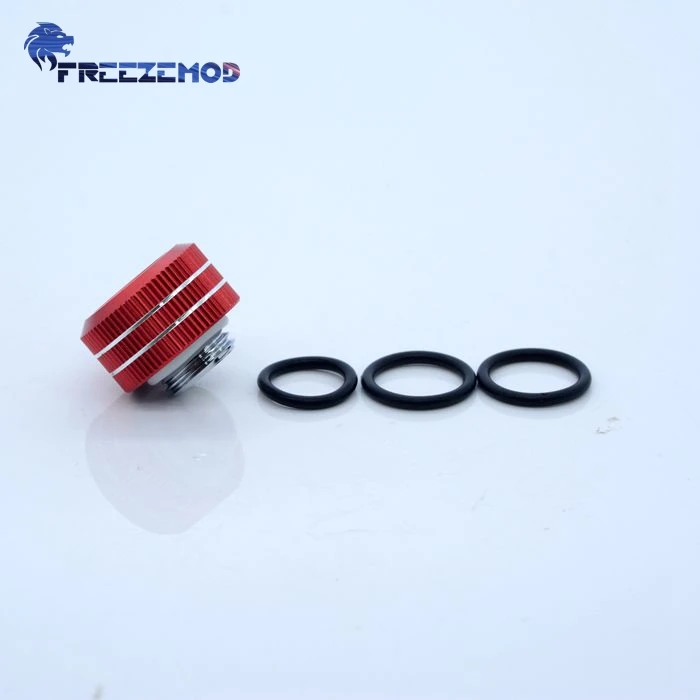

Accessories: white silicone seal ring (installed) + black nitrile seal (spare) (white is long life silicone seal ring

Black is the high temperature seal)

Raw materials: high quality brass + color cover aluminum alloy

Fixing method: Hexagonal M8 fixed (tool please search for “wrench” in the store)

Sealing method: built-in 2 ring seal + external 1 ring seal

Surface treatment: electroplating

Packing list:

OD 14mm hard tube fitting*1 pcs
