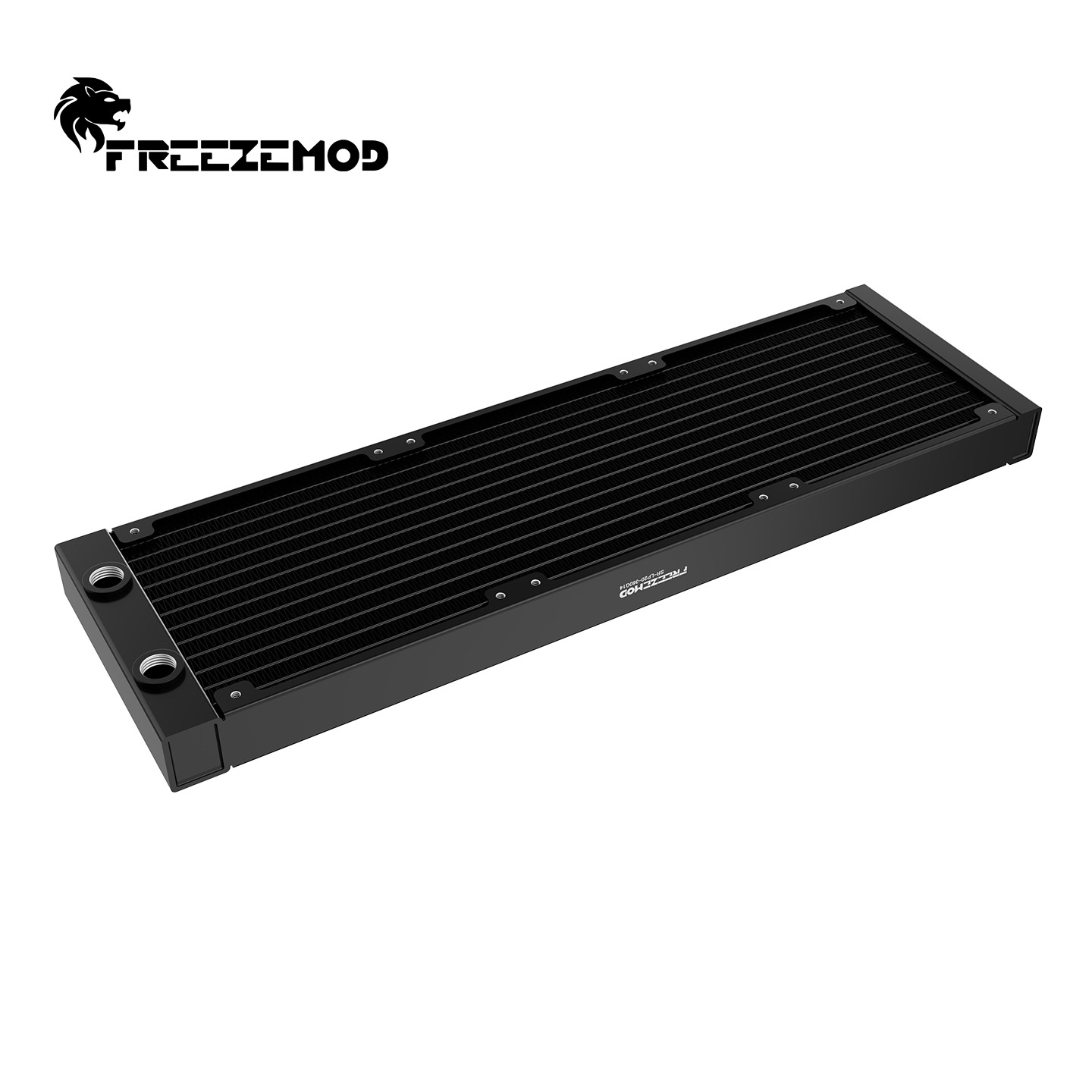

FREEZEMOD Water Cooler Aluminum Radiator Medical Printing Laser Pagoda Mouth 20 Thick Flat Tube. SR-LP20-360
10.20$ – 11.70$
In Stock
Product Description
Ali express store
https://watercooling.aliexpress.com/store/1480188?spm=5261.11152143.0.0.147f3e5fFiecOX
Description:
Model: SR-LP20-360G14/SR-LP22-360F75/SR-LP22-360F95
Material: 3003 aluminum
Hole position:G1/4 thread interface*2(360G14)
OD 7.5mm pagoda(360F75);
OD 9.5mm pagoda(360F95);
Size: Refer to the dimension diagram
Capacity: about 150ml(Manual measurement, with slight error)
FPI value:19(SR-LP20-360)、20(SR-LP22-360)
Pressure test: 1bar
Compatible with fan: 12cm*12cm*2.5cm fan
Number of water channels: 12 PCS(SR-LP20-360)、11PCS(SR-LP22-360)
Heat dissipation area: 0.7 square meters (SR-LP20-360)、0.76 square meters(SR-LP22-360)
Surface treatment: Spraying
Packing list:
360 Aluminum radiator*1 pcs
Screw*24（Thread 6#-32, long screw length 31mm, short screw length 9mm）
Additional information
| Weight | 1.1 kg |
|---|---|
| Brand | |
| Model | SR-LP20-360G14, SR-LP22-360F75, SR-LP22-360F95 |
| Color |
