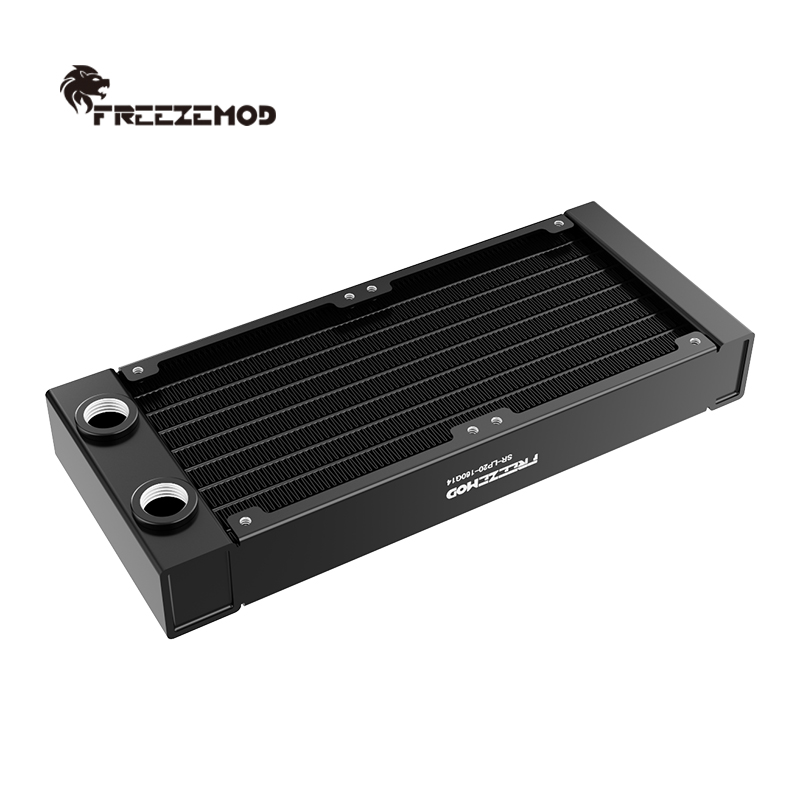

FREEZEMOD Aluminum radiator pagoda thread mouth small liquid cooling medical printing laser, SR-LP20-160

Description: ​

Model: SR-LP20-160F95/SR-LP20-160G14/SR-LP20-160G14-C

Material: Aluminum alloy

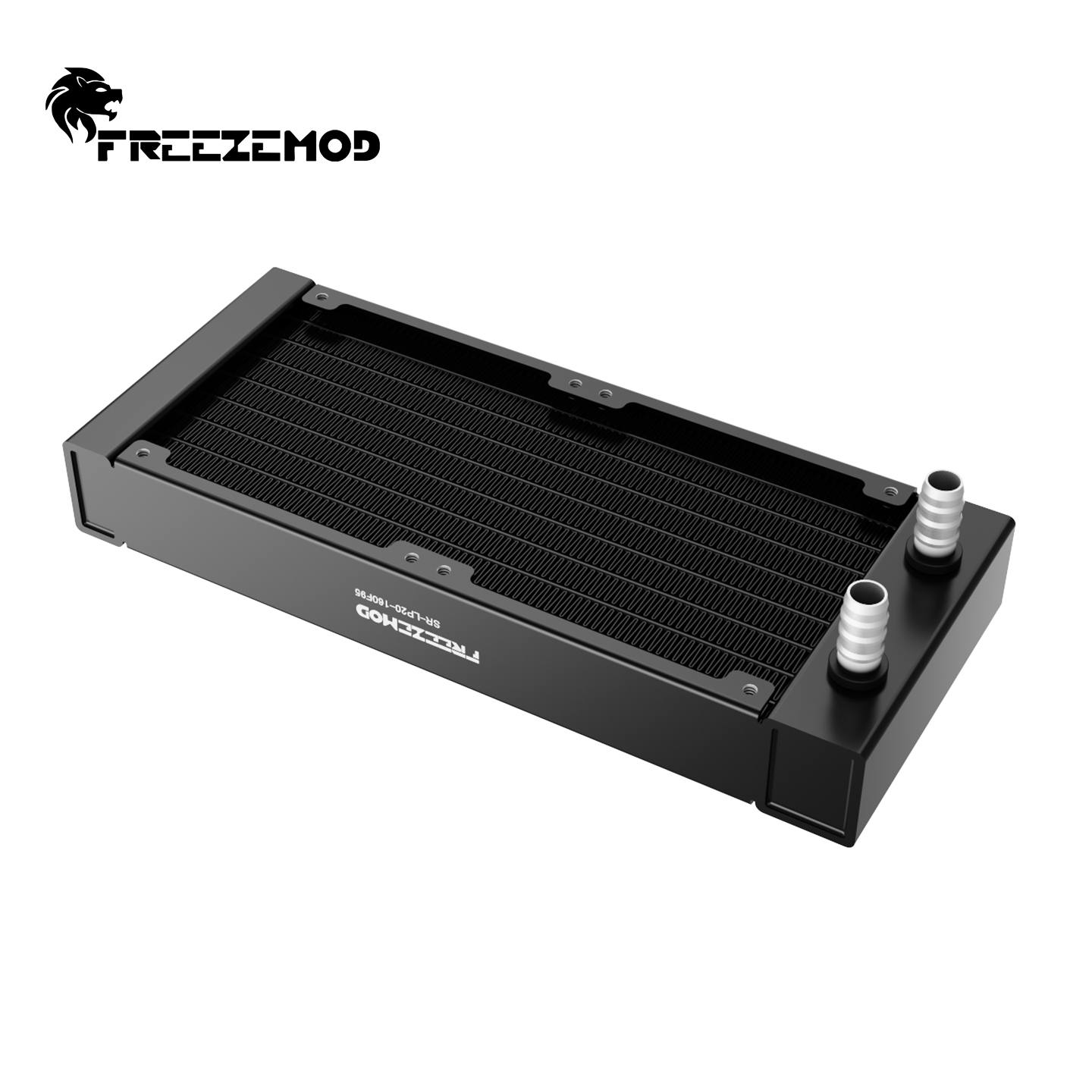

Hole position:OD 9.5mm pagoda(160F95);

                        G1/4 thread interface*2(160G14/160G14-C)

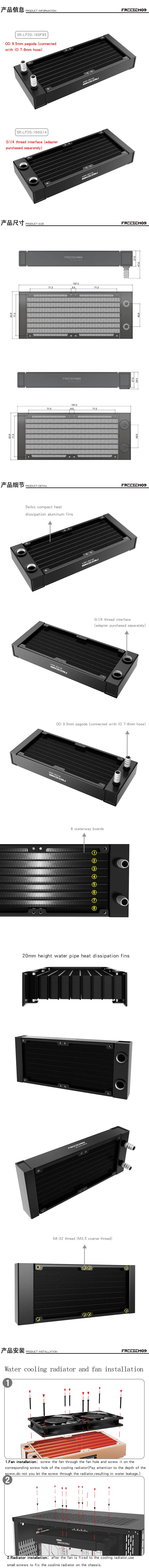

Size：Reference dimension drawing

F​PI value: 19 (160F95/160G14)、20 (160G14-C)

Pressure test: 1bar

Compatible with fan: 8cm*8cm*2.5cm fan

Number of water channels: 8 PCS

Heat dissipation area: 0.23 square meters

Surface treatment: Spraying

Screw*16（Thread 6#-32, long screw length 31mm, short screw length 7mm）
