FREEZEMOD industrial water cooling module 3D printing medical small laser dual fans. SLMZ-V-B

Product Description

Accessories:

1.Water pump tank: PUB-12BT*1

2.Aluminum heat sink: 200*27*83mm*1

3. Plug: HDT-BA2*2
4. Through-board water injection adapter:HCBJT-V1*2
5. Pagoda fitting: BT-2LY*2
6. Fan: Small 3pin connector*2

Description:

Model: SLMZ-V-B

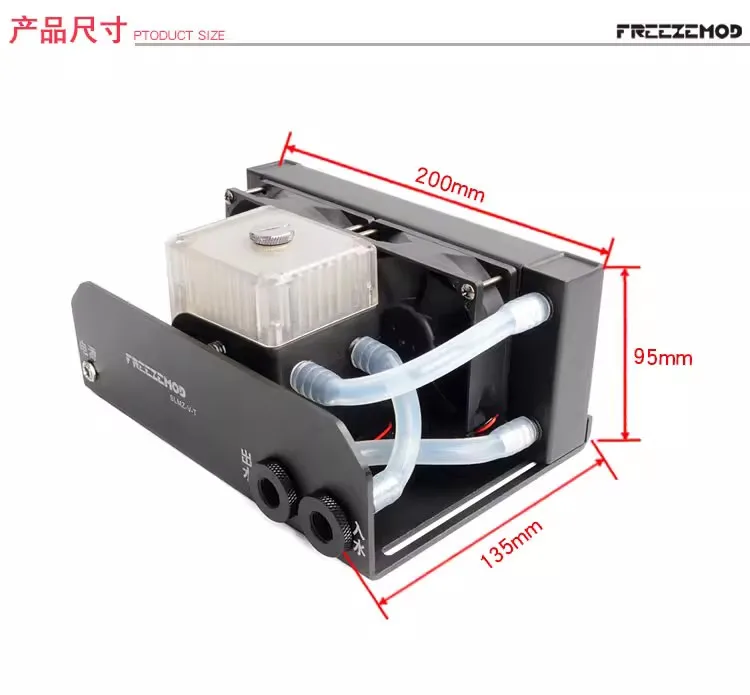

Size: 200*135*95mm

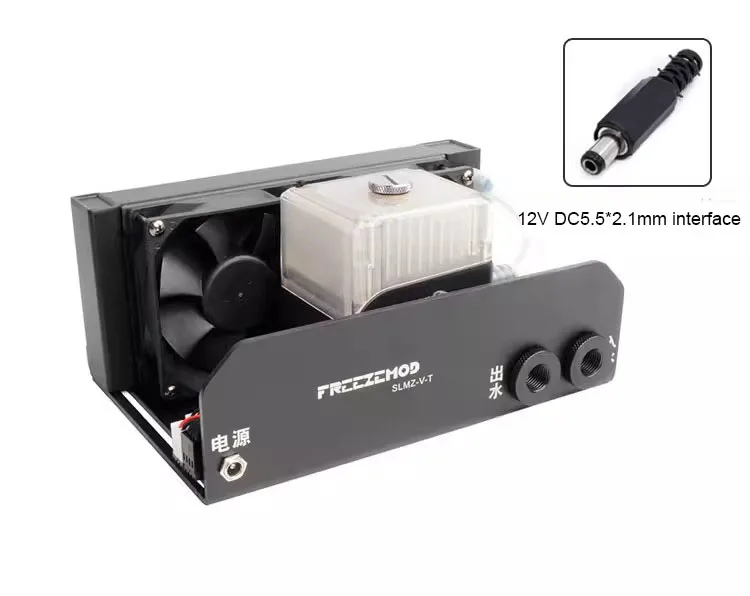

Interface: DC5.5*2.1mm

Capacity: about 120ml

Pump information:

Model: PUB-12BT

Material: PC+ABS+Brass

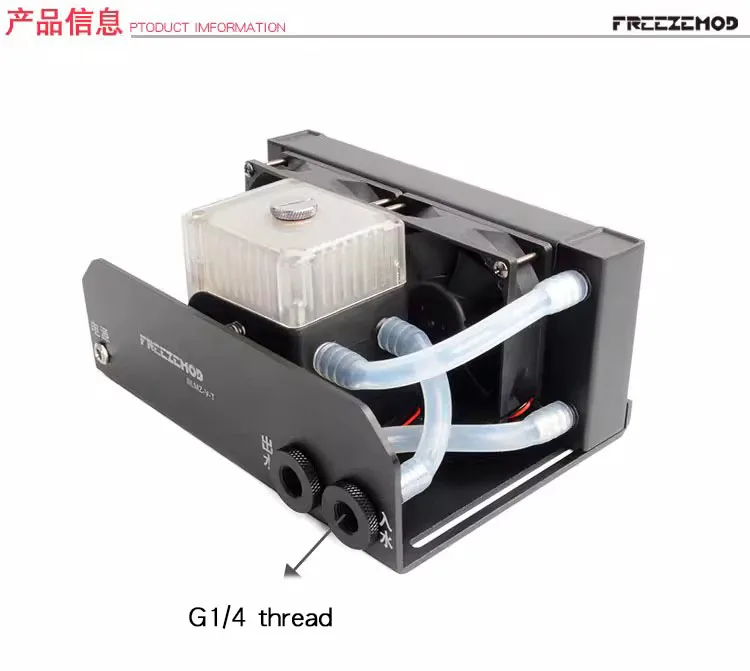

Interface: G 1/4*1,OD9.8mm pagoda hole*2

Temperature: less than 60°C

Size：90mm*58mm*87mm

Cable length: 50cm

Load speed: 6000RPM ± 10%

Rated power: 5W ± 10%

Rated current: 0.55A ± 10%

Rated voltage: 6V

Pump head: 3 meters

Pump flow: 450L/H

Electric shock protection class: Class 2
