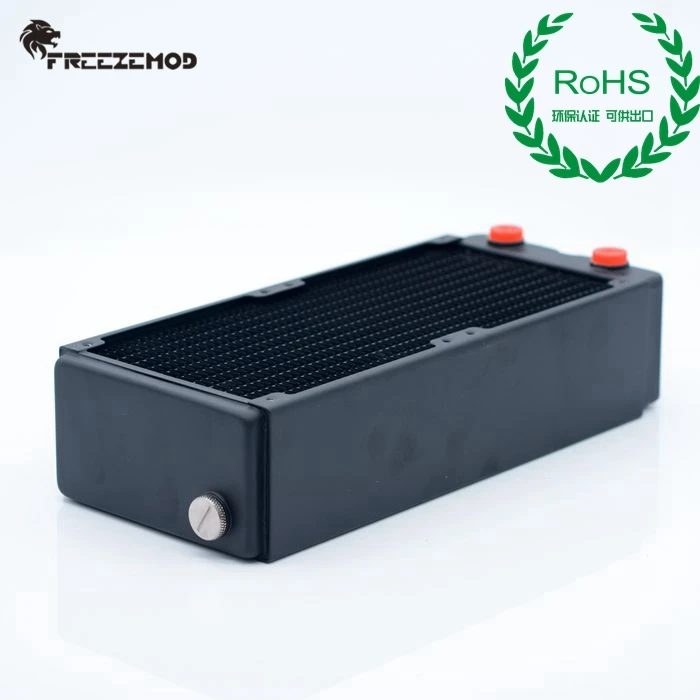

FREEZEMOD computer pc water cooler copper radiator 3 layers 65MM thick copper fins G1/4 ROHS certification. TSRP-HP65-240

Product Description

For more product discount,please reference to our ali express store,when you choose DHL shipping in the ali express store,please contact us to recalculate the shipping fee for you!!

https://watercooling.aliexpress.com/store/1480188?spm=5261.11152143.0.0.147f3e5fFiecOX

Description:

Model: TSRP-HP65

Name: Copper radiator

Specifications:

TSRP-HP65-240:about length 271mm* width 120mm* thickness 65mm (excluding inlet and outlet thread height and the end plug thickness)

Net Weight: about 1203g

Accessories: Long screws 8 pcs (total length about 31mm) + short screws 8 pcs (total length is about 9mm) and the thread is 6#32. Water stop plug *3 (installed)

Material: water chamber + flat tube（brass）；Fin（copper）；Guard plate （stainless iron SUS430）

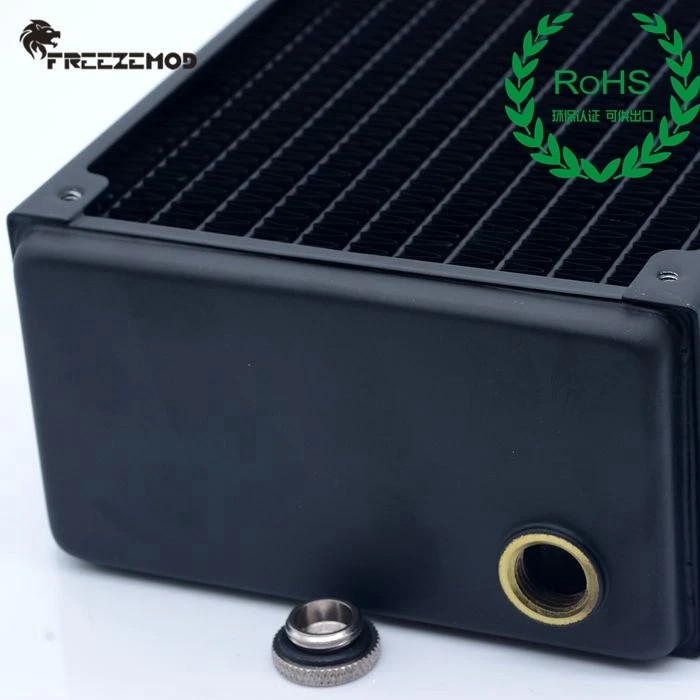

Thread: G1/4

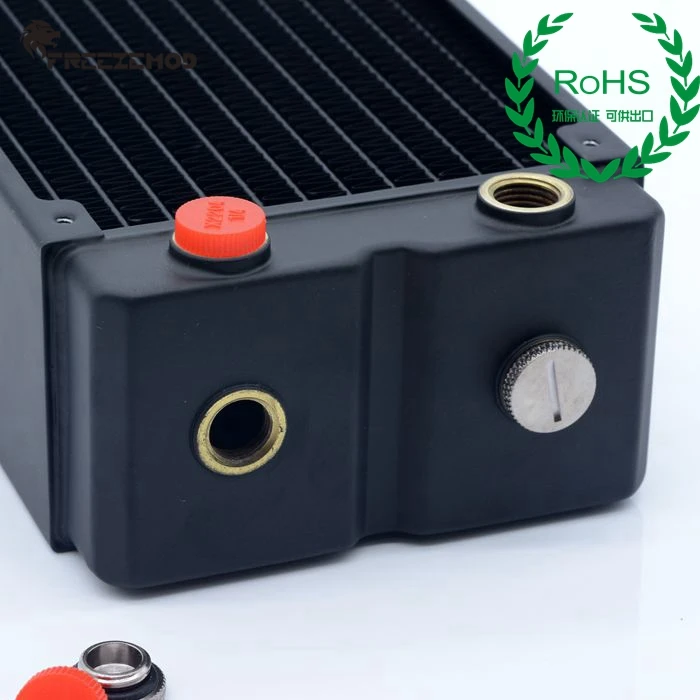

Threaded hole position: 5 (Launching chamber * 4 + upper water chamber * 1)

Number of pipes: 12 * 3 layers

Fin spacing: 4mm

Surface treatment: spraying

Packing list：

240 copper radiator*1

Screw*1 set

Protected original design, please do not copy.

Note: The solder of this product is made of tin with a purity of 99.6%, which is not the purity of 60% tin in the market. Therefore, the whole series has passed ROHS 2.0 certification and can be exported to the EU.

Important note:The below four situation will not accept any dispute for refund,please pay attention to it before order the copper radiator,thank you.
