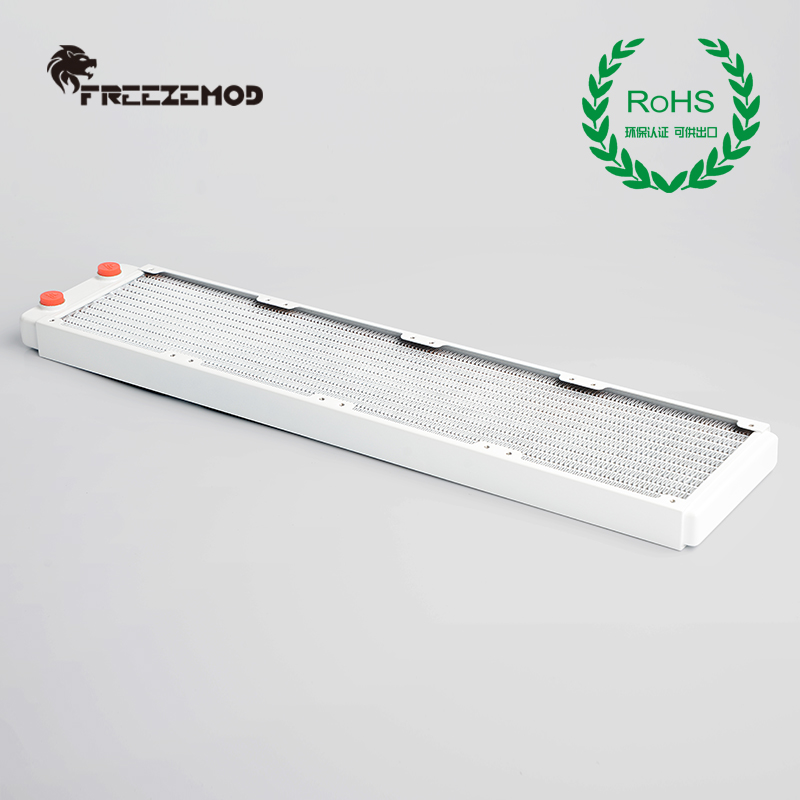

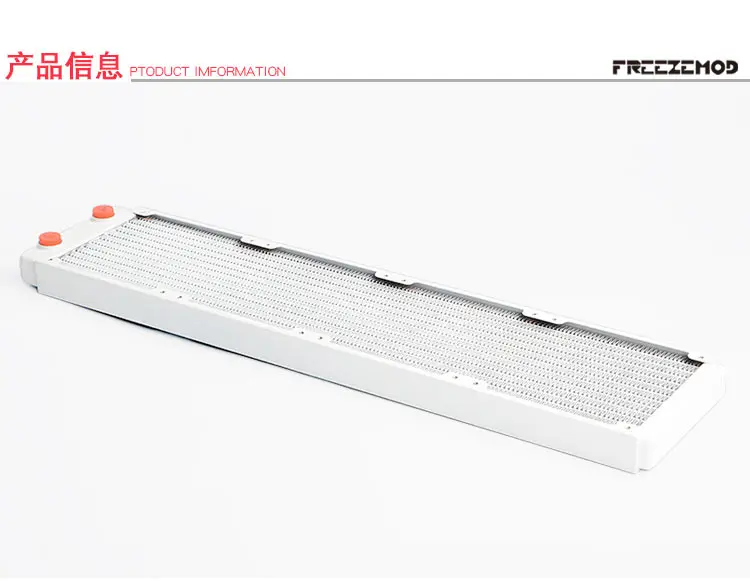

FREEZEMOD computer pc water cooler piano paint white color copper radiator heat sink ROHS certification. TSRP-WP480

Model: TSRP-WP480

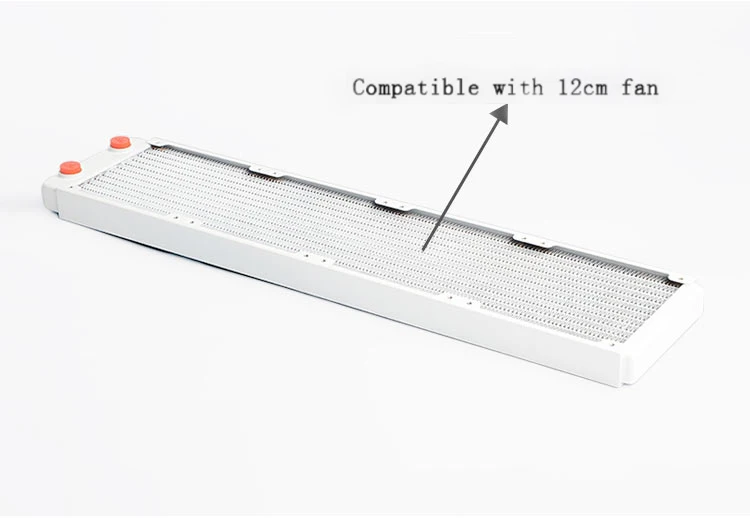

Name: Copper radiator

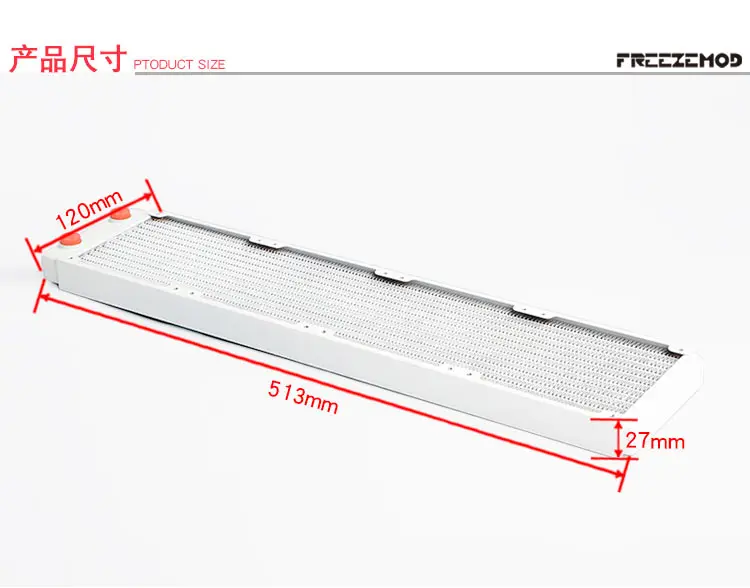

Specifications: about 513mm * width 120mm * thickness 27mm (excluding inlet and outlet thread height)

Net weight: about 920g

Screw: length 16 (total length about 31mm) + short 16 (total length about 9mm), thread is 6 #32.

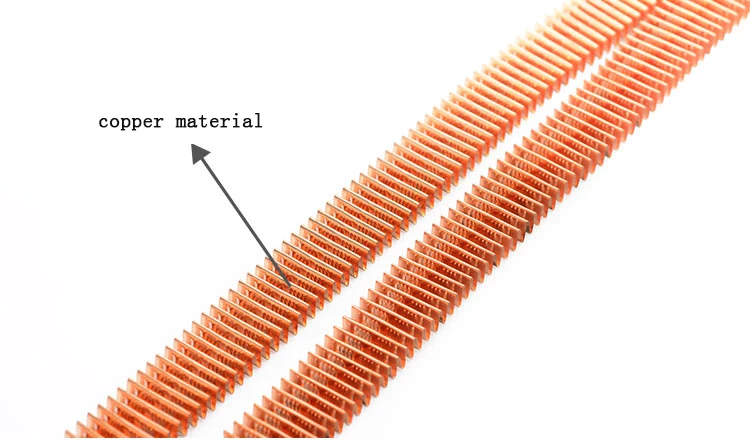

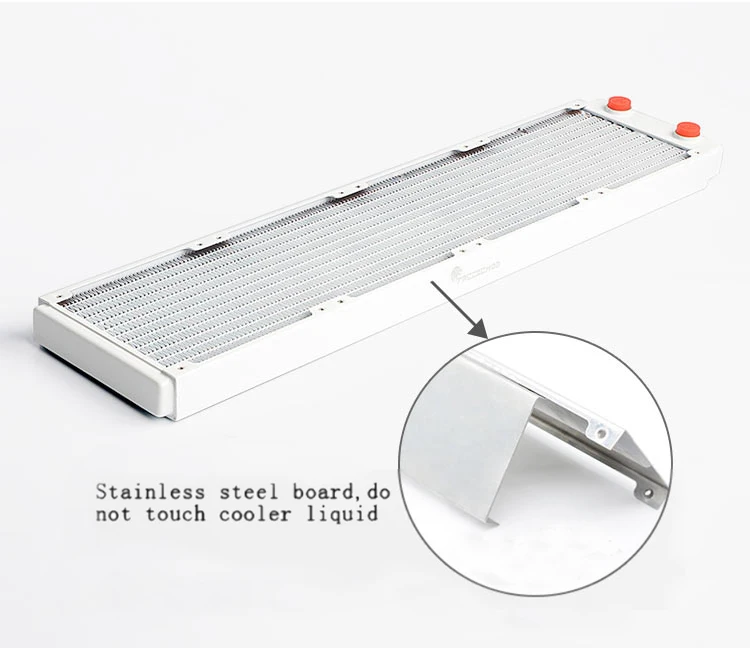

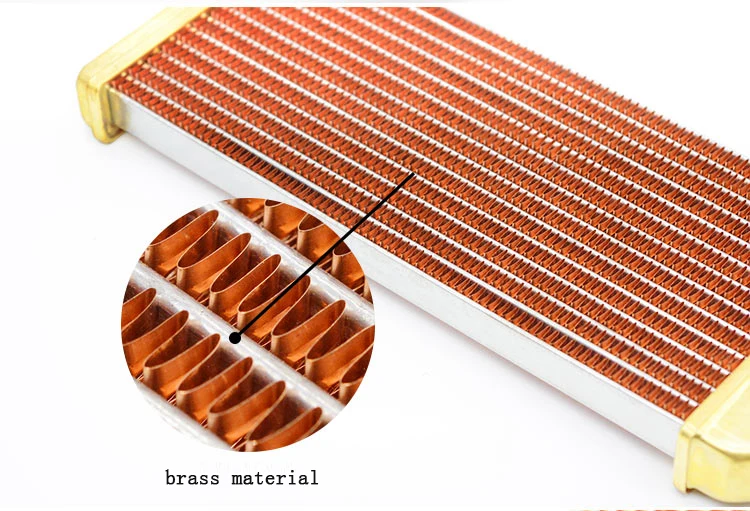

Material: water chamber + flat tube(brass),Fin(copper),Guard plate(stainless iron SUS430)

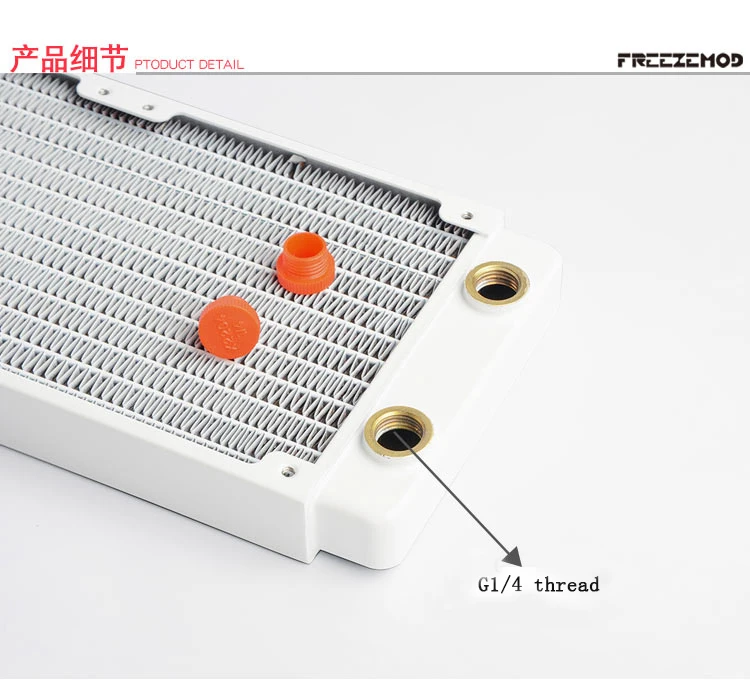

Thread: G1/4

Thread hole position: 2

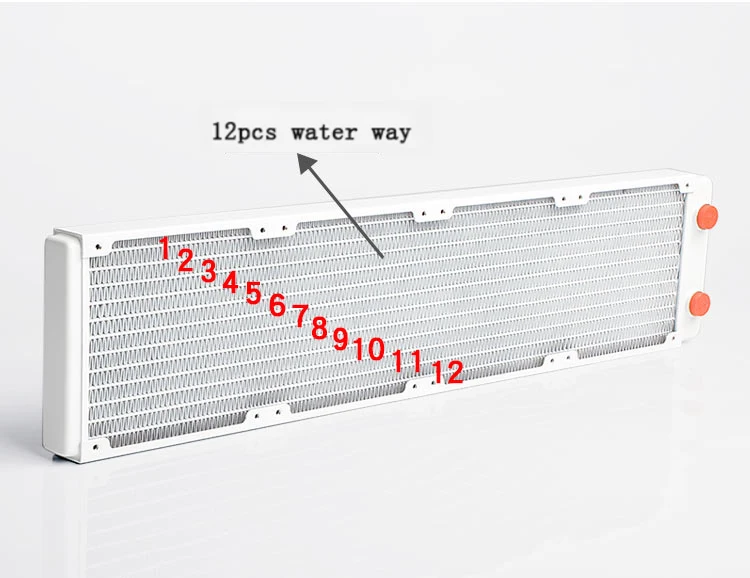

Number of pipes: 12

Surface treatment: spraying

Packing list:

Brass radiator * 1pcs

Mounting screw * 1set
