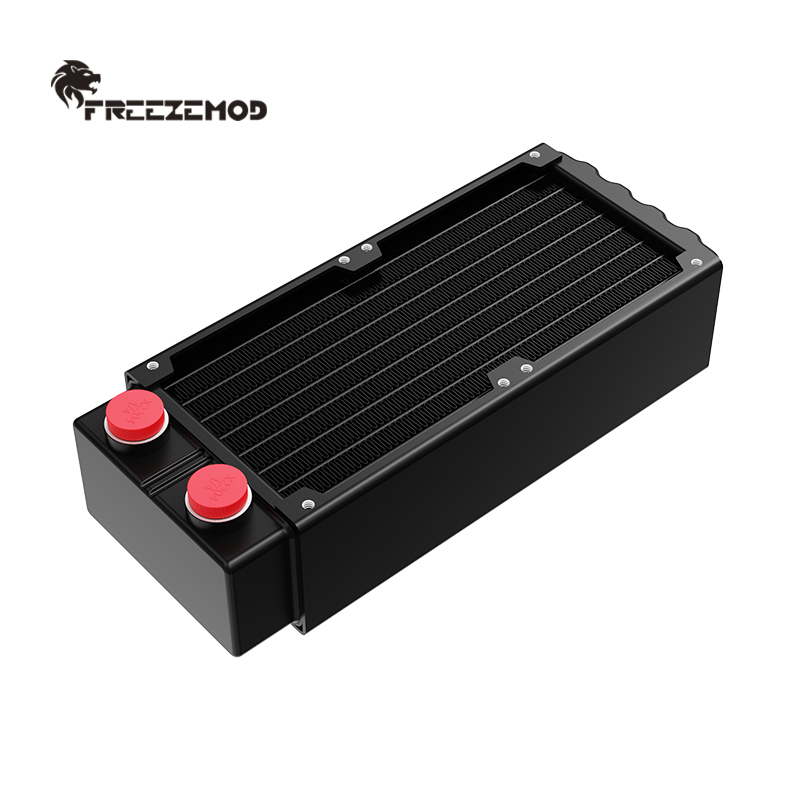

FREEZEMOD Water cooling double-layer aluminum radiator 8CM installed liquid cooling medical printing laser, SR-160SLG14

Description: ​

Model: SR-160SLG14

Material: 3003 aluminum

Hole position: G1/4 thread interface*2

Size：194.5mm*81.5mm*48.5mm

C​apacity: About 150ml(Manual measurement,with slight error)

Pressure test: 1bar(Please note: It is recommended not to exceed this pressure value during use, as exceeding it may pose a risk of damage)

Compatible with fan: 8cm fan

Number of water channels: 8 in single layer, 16 in total in 2 layers

Heat dissipation area: 0.44 square meters

Surface treatment: Spraying

Screw*16（Thread 6#-32, long screw length 30mm, short screw length 8mm）
