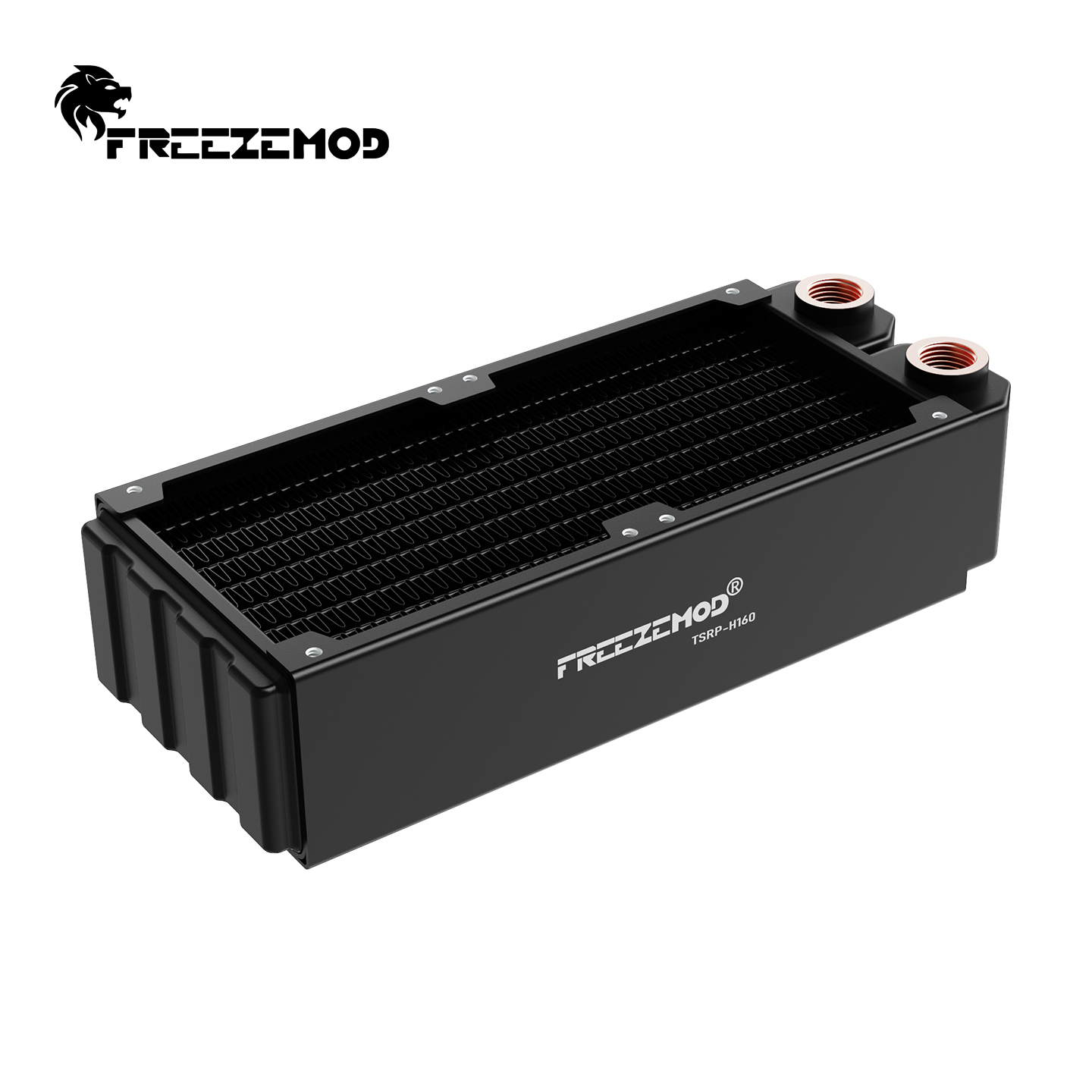

FREEZEMOD computer water cooler 45mm double-layer copper radiator two 80 fan bits. TSRP-H160

Model: TSRP-H160

Material: red copper fins + brass water chamber flat tube + steel guard plate

Hole position: G1/4 thread *2

Size: 191mm* 81.2mm* 47.25mm

Capacity: about 100ml (manual measurement, slight error)

Pressure test: 1bar(Please note: it is recommended not to exceed this pressure value during use, which may cause damage risk)

Suitable fan: 8cm fan

Number of pipes: 8 in single layer, 16 in total in 2 layers

Heat dissipation area: 0.29 square meters

Surface treatment: Spraying

Welding agent: environmentally friendly tin complies with ROHS 2.0

Packing list:

Copper radiator *1pcs

Screw*16（Thread M3, long screw length 31mm, short screw length 7mm）
