FREEZEMOD pump and water tank integrated lift 3.5 meters flow 500L computer water cooler built-in defoaming. PUB-SZM6

23.00$28.50$

In Stock

  • FREEZEMOD
  • 100mm
  • 150mm
  • 200mm
Clear
Compare
SKU: N/A Category:

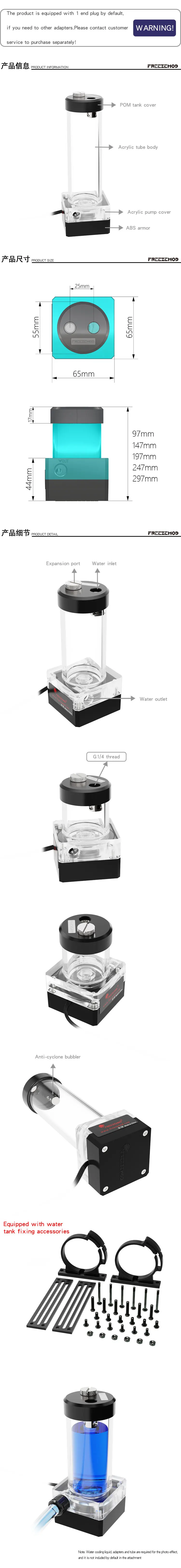

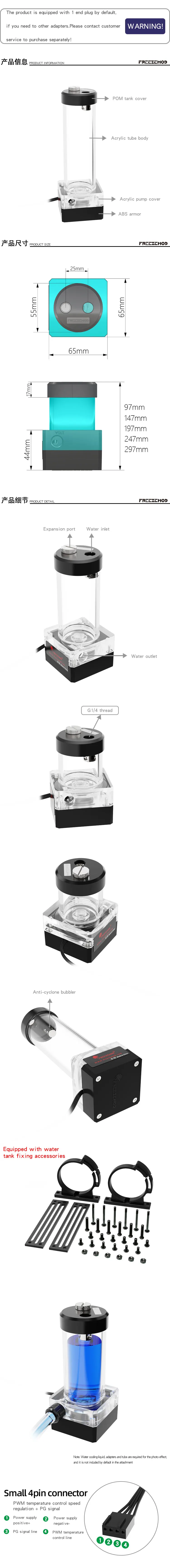

Product Description

Specification:

Name: Integrated water pump water tank

Model: PUB-SZM6

Material: Acrylic+POM+ABS

Hole: G1/4*3

Water tank outer diameter: tube body 50mm/cover 55mm

Pump size: about 65mm* 65mm* 46mm

Overall height: about 100mm/ 150mm/200mm (manual measurement, with an error of ± 2mm)

Pump parameters

Model: PU-SZM6

Material: acrylic pump cover + ABS armor

Interface: G 1/4*2

Temperature: 0-60°C

Size: 65mm*65mm* 46mm

Line length: 50cm

Full load speed: 3500RPM±10%

Rated current: 0.85A

Rated voltage: 12V DC

Pump power: 10W

Waterproof grade: IP54

Pump head: 3.5 meters

Pump flow: 550L/H

Power connector: large 4P + small 4 pin

Packing list:

Water pump * 1 pcs

Water tank*1pcs

Silicone ring*2pcs

Shock pad *1pcs

Mounting screw * 2set

Plastic 50mm adjustable buckle * 2

Radiator installation I shape buckle * 2

Built-in defoamer * 1pcs (installed)

Additional information

Weight 0.8 kg
Brand

Length

100mm, 150mm, 200mm
